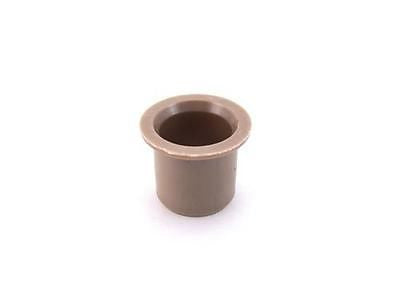

Shifter bushing sleeve cup for T4 T5 T56 T45 TR3550 TKO

Shifter bushing sleeve cup for T4 T5 T56 T45 TR3550 TKO



Replacement shifter isolator dampener cup plastic bushing for Borg Warner / Tremec T4, T5, T45, T56, Magnum, TR3550, and TKO manual transmissions - OE & aftermarket including:

  • GM
    • 1983-2002 Camaro & Firebird
    • 1982-1987 S-10 & S-15 pickup - except RPO M73 (Isuzu S101 4 speed)
    • 1988-1993 S-10 & S-15 / Sonoma pickup - 2.5 & 2.8L only
    • 1994-1995 S-10 & Sonoma pickup - 2.2L only
    • 1983-1987 S-10 Blazer & S-15 Jimmy - except RPO M73 (Isuzu S101 4 speed)
    • 1988-1989 S-10 Blazer & S-15 Jimmy - 2.5 & 2.8L only
    • 1982-1987 Chevette & T1000 - gas 5 speed only
    • 1985-1989 Astro & Safari van
    • 1988-2006 Holden Commodore - except VS w/ V6
    • 2001-2006 Holden / Vauxhall Monaro & Chevrolet Lumina SS
    • 2004-2006 Pontiac GTO
    • 2004-2007 Cadillac CTS-V
    • 2005-2006 Chevy SSR
      • Does NOT FIT any Corvette
  • Ford
    • 1983-2000 Mustang - 5 speed
    • 2001-2004 Mustang - V6 only
      • Does NOT FIT 2001-2004 V8 5 speed (TR3650)
    • 2003-2004 Mustang SVT Cobra
    • 2005-2010 Mustang - V6 only - under linkage cover on trans
    • 1983-1986 Mercury Capri - 5 speed
    • 1983-1988 Thunderbird Turbo Coupe & Mercury Cougar XR-7
    • 1984-2008 Falcon (Australian)
    • 1985-1990 Sierra Cosworth RS (European)
    • 2000-2003 Aston Martin DB7 Vantage V12
  • Dodge
    • 1992-2007 Dodge Viper
    • 2004-2006 Dodge Ram SRT-10
  • AMC & Jeep
    • 1982-1986 Jeep CJ
    • 1982-1983 AMC Spirit, Concord, & Eagle
  • Nissan
    • 1982-1983 280ZX - turbo only (FS5R90A = T5)
    • 1984-1986 300ZX - turbo only (FS5R90A = T5)
  • Isuzu
    • 1991-1997 Rodeo - 2wd 4 cyl only
  • Honda
    • 1994-1996 Passport - 2wd 4 cyl only
  • TVR
    • 1994-2002 Griffith
    • 1994-2001 Chimaera
    • 1996-2005 Cerbera
    • 2002-2006 Tamora
    • 2002-2006 T350
    • 1999-2006 Tuscan
    • 2005-2006 Sagaris
  • Tremec aftermarket
    • T5, T56, Magnum, XL, TR3550, TKO

Bushing fits into a 19mm bore and a accepts a 16mm dia sphere (at bottom of shift lever)

OE replacement part compatible with stock and most aftermarket shifters; equivalent to:

  • GM # 14105942 ; 14050768
  • FoMoCo # E3ZZ-7K453-A
  • Mopar # 83502930
  • Nissan # C2853-P9500
  • Honda # 8-97028-153-0
  • Tremec # 1352-127-009

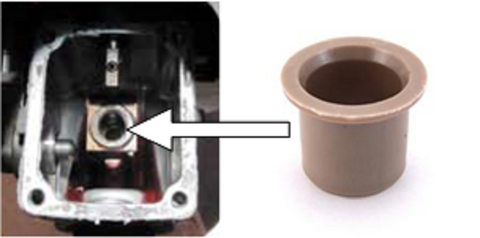

Directly under shifter control rod inside transmission where shifter linkage engages the shift control rod; intended to be a serviceable wear item.  *** On cars with remote shifters, this part may only be accessible by removing or lowering transmission. ***  Don't be fooled into buying a bronze or brass replacement that doesn't fit correctly, transmits excess shock through the linkage, & wears faster with no real benefit - these OE quality polymer cups fit correctly, are extremely durable, reliable, isolate noise and vibration, and last a long time.
