Core Shifter w/ Hurst stick for Toyota 4Runner : 1986-1987 I4 turbo only

Short throw shifter kit for OE replacement on 5 speed manual trans in:

  • 1985-1988 Toyota Pickup w/ 2.4L turbocharged I4 (22R-TE) - 2wd (R150 turbo only)
  • 1986-1987 Toyota Pickup w/ 2.4L turbocharged I4 (22R-TE) - 4x4 (R151F)
  • 1986-1987 Toyota 4Runner w/ 2.4L turbocharged I4 (22R-TE) - 4x4 (R151F)

ONLY FITS R150 & R151F manual trans specific to these turbo trucks (4-bolt pattern w/ tower offset forward)

  • Does NOT FIT other R150, "non-turbo" models, other model years, or any other model
  • 15" tall from base flange to top of knob; 40% throw reduction
    • IF YOU HAVE A 2"+ BODY LIFT (frame spacers) - upgrade to taller stick #0090
  • Lower bushing cup not included; reuse existing or buy separately

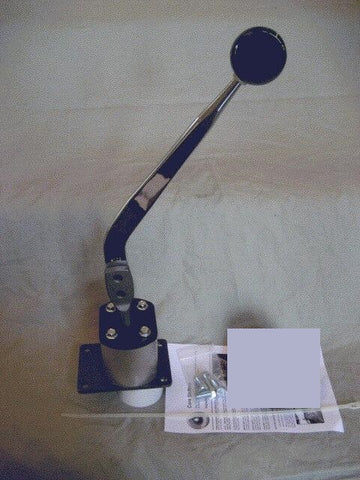

Kit includes chrome stick #4106, classic knob, base assembly, mounting hardware, and installation instructions. The base is built by Core Shifters using proven components inside a custom housing:

  • High-strength billet steel gear selector stub
  • Hardened steel cross-pin & stainless steel fulcrum pivot ring
  • Self-centering cross-gate bias springs with heat treated spring seats
  • Glass-reinforced polyamide fulcrum socket with steel wear clips
  • Rubber oil control seal with steel retaining ring
  • Extruded aluminum housing with Spirolox steel support ring
  • Laser-cut steel lid & baseplate
