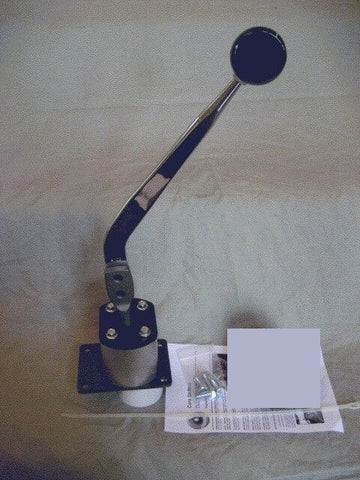

*** Note: NOT as pictured! RA60 base is similar but with a machined lower flange. ***

Short throw shifter kit for OE replacement on 6 speed manual trans in:

• 2005-2015 Toyota Tacoma - 4.0L V6, 2wd only
• 2005-2006 Toyota Tundra - 4.0L V6, 2wd & 4x4

ONLY FITS RA60 manual trans specific to these V6 2wd trucks

• Does NOT FIT 4x4 or FJ Cruiser (different stick), 4 cyl, other model years, or any other model

• 15.5" tall from base flange to top of knob; 30% throw reduction
• IF YOU HAVE A 2"+ BODY LIFT (frame body-to-frame mount spacers) - upgrade to taller stick #0090

Kit includes PLAIN chrome stick, classic knob, base assembly w/ lower pivot cup, mounting hardware, boot adapter grommets, and installation instructions. The base is built by Core Shifters using proven components inside a custom housing:

• High-strength billet steel gear selector stub
• Hardened steel cross-pin & stainless steel fulcrum pivot ring
• Self-centering cross-gate bias springs with heat treated spring seats
• Glass-reinforced polyamide fulcrum socket with steel wear clips
• Rubber oil control seal with steel retaining ring
• Extruded aluminum housing with Spirolox steel support ring
• CNC-machined billet aluminum base
• Laser-cut steel lid
