*** NOTE: this shifter eliminates reverse lockout ***

Short throw shifter kit for OE replacement on 5 speed manual trans in:

• 1986 -1987 Ford Aerostar Van

  • Does NOT FIT Ranger or Bronco II


ONLY FITS Toyo Kogyo TK5 gearbox specific to Aerostar:

• Square, slightly diamond base bolt pattern (54mm wide x 56mm long)
  • White plastic OE shifter base

• 20" from base flange to top of knob; 30% throw reduction

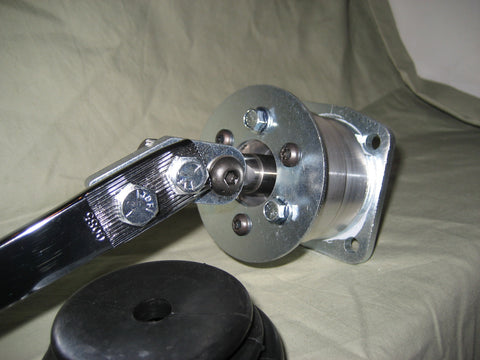

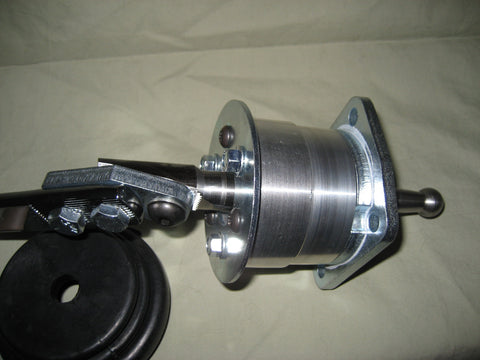

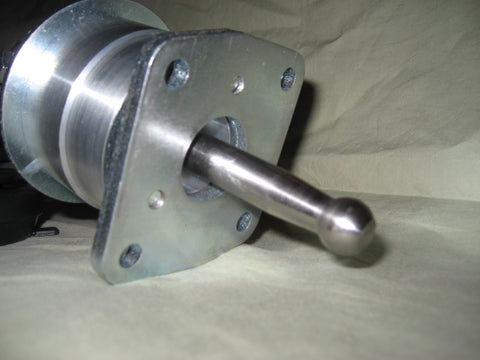

Kit includes chrome stick #4077 & classic knob, base assembly, lower bushing cup, mounting hardware, and installation instructions. The base is built by Core Shifters using parts from Hurst suppliers inside a custom housing:

• High-strength billet steel gear selector stub
• Hardened steel cross-pin & stainless steel fulcrum pivot ring
• Self-centering cross-gate bias springs with heat treated spring seats
• Glass-reinforced polyamide fulcrum socket with steel wear clips
• Rubber oil control seal with steel retaining ring
• Extruded aluminum housing with Spirolox steel support ring
• CNC-machined billet aluminum base
• Laser-cut steel lid
