Core Shifter w/ chrome stick for Mazda Navajo : 1991-1994 w/ 5 speed (M5R1)



Short throw shifter kit for OE replacement on 5 speed manual trans in:

  • 1988-1990 Ford Ranger - except 2.9L V6
  • 1991-1994 Ford Ranger - all
  • 1988-1994 Ford Aerostar
  • 1991-1994 Ford Explorer
  • 1991-1994 Ford Explorer Sport
  • 1991-1994 Mazda Navajo
  • 1994 Mazda B-series pickup (North America)

ONLY FITS Mazda M5OD-R1 manual trans produced BEFORE 1995 - trans code "M"

  • Stock stub for this model has an overall length of 118mm w/ 70mm below gasket
    • IF your transmission has been serviced or changed, it MAY REQUIRE A DIFFERENT BASE. If you install the wrong one it will not work properly and could cause damage. To confirm, remove shifter stub and measure overall length
  • Does NOT FIT 2.9L V6, Bronco II, newer models, M5OD-R2, F-150, or any other model
  • IF YOU HAVE A 2"+ BODY LIFT (frame spacers) - upgrade to stick #0090

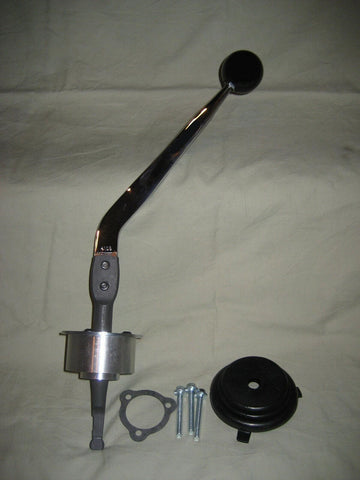

Kit includes PLAIN chrome stick #4106, classic knob, base assembly, gasket, mounting hardware, dust cover boot, and installation instructions. Due to the tall factory console boot, a SuperBoot is suggested (optional upgrade, additional charge) - which can be fitted into the stock plastic trim plate. Throw is reduced by ~ 42%. Compare to Hurst #3915020

The base is built by Core Shifters using proven components inside a custom housing:

  • High-strength billet steel gear selector stub w/ induction hardened tip
  • Hardened steel cross-pin & glass-reinforced polyamide fulcrum pivot ring
  • Self-centering cross-gate bias springs with heat treated spring seats
  • CNC-machined billet aluminum housing with steel wear clips
  • Laser-cut steel lid
