Short throw shifter kit for OE replacement on 5 speed manual trans in:

• 1993-1999 Chevrolet & GMC C/K 1500 full-size trucks - except diesel
  • Also fits C/K 2500 w/ GVWR below 8500 lb - except diesel
    • Does NOT FIT optional HD trans (RPO MT8, cast iron case)
• 1999-2006 Chevrolet Silverado & GMC Sierra 1500 series trucks
• 2007 Chevrolet Silverado & GMC Sierra "Classic" 1500 series trucks

ONLY FITS NV3500 manual trans specific to these models & years - NO EARLIER!

• Does NOT FIT HD trans (cast iron case), diesel or 2500 HD (GVWR > 8500 lb), older models, S10, or any other model; NOT for custom use
  • WARNING: DOES NOT FIT earlier model years!
• Base configured for transmission receptacle height of 1/4" as original to these models
  • Replaces GM #12375021; 12380394; 12470372; 12382846; 27963, 12382863; 12382852; 27874
  • IF your transmission has been serviced, it MAY REQUIRE A DIFFERENT BASE. If you install the wrong one it will not work properly and could cause damage. To confirm height, remove shifter base and measure transmission as shown in last pic
• ~stock knob height, 30% throw reduction
  • ONE-PIECE LEVER  stick is NOT removable!

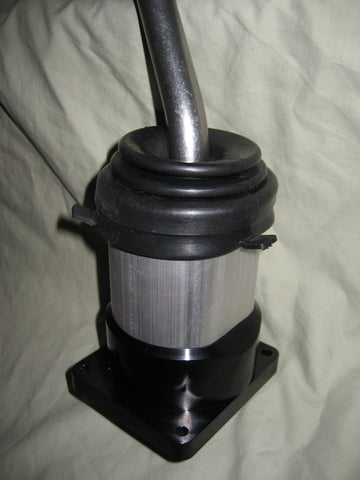

Kit includes classic knob, lever & base assembly w/ lower pivot cup, mounting hardware, dust cover boot, floor boot adapter grommet, and installation instructions. The base is built by Core Shifters using parts from Hurst suppliers inside a custom housing:

• High-strength billet steel gear selector stub
• Hardened steel cross-pin & stainless steel fulcrum pivot ring
• Self-centering cross-gate bias springs with heat treated spring seats
• Glass-reinforced polyamide fulcrum socket with steel wear clips
• Rubber oil control seal with steel retaining ring
• Extruded aluminum housing with Spirolox steel support ring
• CNC-machined billet aluminum base
• Laser-cut steel lid
