Core Shifter w/ Hurst stick for 1982-1987 AMC Eagle + SX/4 - AWD T4 or T5 (5-bolt base)

Short throw shifter kit for OE replacement on 4 or 5 speed manual trans in:

  • 1982-1987 AMC Eagle

Only fits T4 & T5 manual trans specific to these AWD models

  • Base has "5-hole" bolt pattern (4x4)
    • "4-hole" version for 2wd Spirit / Concord available in separate listing
  • Does NOT FIT other T5 or any other model; NOT for custom use - see swap bases
  • 5 speed knob is default; if you have a 4 speed, specify w/ payment

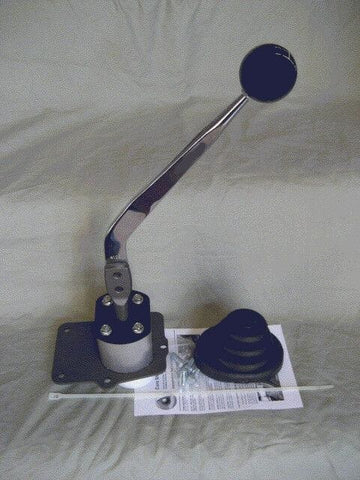

Kit includes chrome stick #4106, classic knob, base assembly, mounting hardware, and installation instructions. Lower bushing cup not included (reuse existing or buy separately). Overall height from base flange to top of knob is ~15". Throw is reduced by ~30%

The base is built by Core Shifters using proven components inside a custom housing. This kit has many superior features & components, integrated into a unique, exclusive assembly:

  • High-strength billet steel gear selector stub
  • Hardened steel cross-pin & stainless steel fulcrum pivot ring
  • Self-centering cross-gate bias springs with heat treated spring seats
  • Glass-reinforced polyamide fulcrum socket with steel wear clips
  • Rubber oil control seal with steel retaining ring
  • Extruded aluminum housing with Spirolox steel support ring
  • Laser-cut steel lid & baseplate
  • >
