Core Shifter w/ Hurst stick for Toyota Pickup : 1984-1995 I4 efi 2wd (W55)



*** Similar to pics but w/ a 6-bolt baseplate specific to W55 ***

Short throw shifter kit for OE replacement on 5 speed manual trans in:

  • 1984-1995 Toyota Pickup (aka Hilux) w/ 2.4L I4 efi (22R-E) - 2wd only (W55)
  • 1985-1988 Toyota Pickup (aka Hilux) w/ 2.4L I4 carb (22R) - 2wd only (W46 & W56 2wd)
  • 1985-1988 Toyota Pickup Cab / Chassis (W46 4 speed)
  • 1985-1988 Toyota Pickup One Ton (W56 2wd)

ONLY FITS W46, W55, & W56 manual trans specific to these I4 efi 2wd trucks

  • Does NOT FIT I4 carb, 4x4, V6, other model years, or any other model
  • 15.5" tall from base flange to top of knob; 23% throw reduction
    • IF YOU HAVE A 2"+ BODY LIFT (frame spacers) - upgrade to taller stick #0090
  • Lower bushing cup not included; reuse existing or buy separately

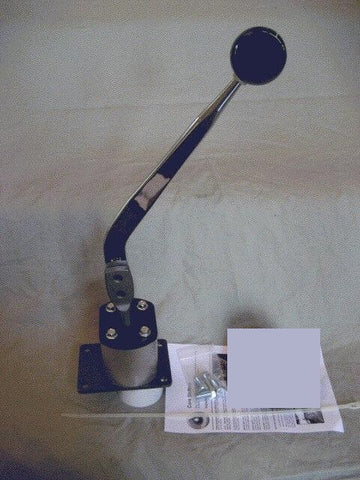

Kit includes chrome stick #4106, classic knob, base assembly, mounting hardware, and installation instructions. The base is built by Core Shifters using proven components inside a custom housing:

  • High-strength billet steel gear selector stub
  • Hardened steel cross-pin & stainless steel fulcrum pivot ring
  • Self-centering cross-gate bias springs with heat treated spring seats
  • Glass-reinforced polyamide fulcrum socket with steel wear clips
  • Rubber oil control seal with steel retaining ring
  • Extruded aluminum housing with Spirolox steel support ring
  • Laser-cut steel lid & baseplate
