Offset & tilt stick bracket for custom work
-

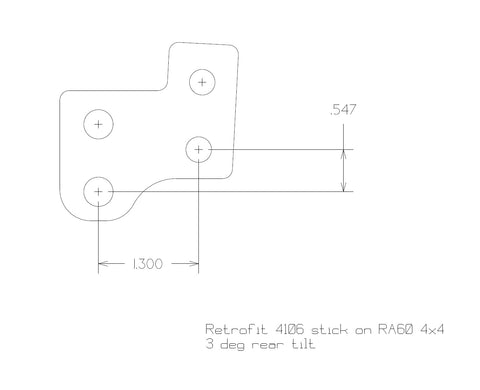

Offsets stick 1.3" rearward, 0.5" upward, and tilts stick 3 deg rearward
- Made of 5/16" thick mild steel, zinc-plated
- Lower holes are clearanced for 3/8" bolts
- Upper holes have 3/8"-24 thread to mount stick
- Bolts for upper holes included (reuse existing bolts in lower holes)
- Smooth on both sides (no stick serrations)
- Mate smooth side of Hurst stick to bracket face
- Mate bracket to smooth side of stub where possible - usually requires flipping stub 180 deg in housing to get smooth faces of stick and stub on same side
- Warning - some stubs do NOT have a smooth side
- Apply RTV silicone sealant to mating faces before final assembly, to enhance connections, and torque 3/8" bolts to 30 ft-lbs
- NOTE: dust boot for base must remain in use - low profile boot that fits under stick mount area preferred
