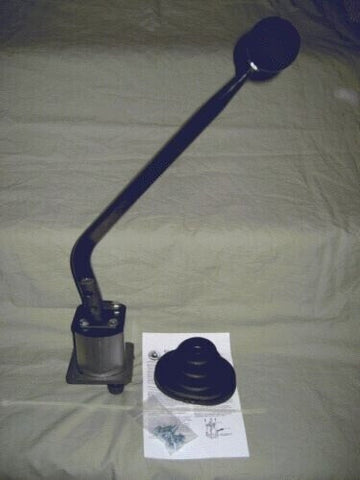

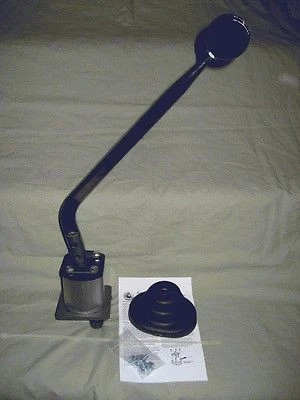

*** Pics are of a similar shifter but the NV4500 shifter has no lower pivot bushing and the lower ball has flats on each side. ***

Short throw shifter kit for OE replacement on 5 speed manual trans in:

• 2001-2007 Chevy Silverado & GMC Sierra 2500 & 3500 series trucks (GMT880)
• 6.0L gas engine only - RPO LQ4
• Does NOT FIT older model years of GMT880

• Does NOT FIT 2001-2002 GMT480 HD classic trucks (flat door handles)

ONLY FITS NV4500 trans specific to these GM models - RPO MW3, cast iron case

• Replaces GM #12478063 ; 33906
• Compatible w/ case cover GM #12478062 ; 33900 - no others!
• Does NOT FIT 6.6 or 8.1L (6 speed), older models (shorter stub), 1500 series, any Dodge, or any other model
• If your trans is not original, confirm it has a bolt-on shifter base & lid casting #33983
• WARNING: does NOT FIT 1995-2000 GM NV4500 (lid casting #18860 or 25137, 1/4" shorter mount)
• 20" tall from base flange to top of knob; 22% throw reduction; ~1" higher than stock
• IF YOU HAVE a body lift (frame spacers) or transfer case drop: use an extension bracket to elevate stick

Kit includes chrome stick #0295, classic knob, base assembly, mounting hardware, dust cover boot, and installation instructions. The base is built by Core Shifters using proven components inside a custom housing:

• High-strength billet steel gear selector stub
• Hardened steel cross-pin & stainless steel fulcrum pivot ring
• Self-centering cross-gate bias springs with heat treated spring seats
• Glass-reinforced polyamide fulcrum socket with steel wear clips
• Rubber oil control seal with steel retaining ring
• Extruded aluminum housing with Spirolox steel support ring
• Laser-cut steel lid & baseplate
